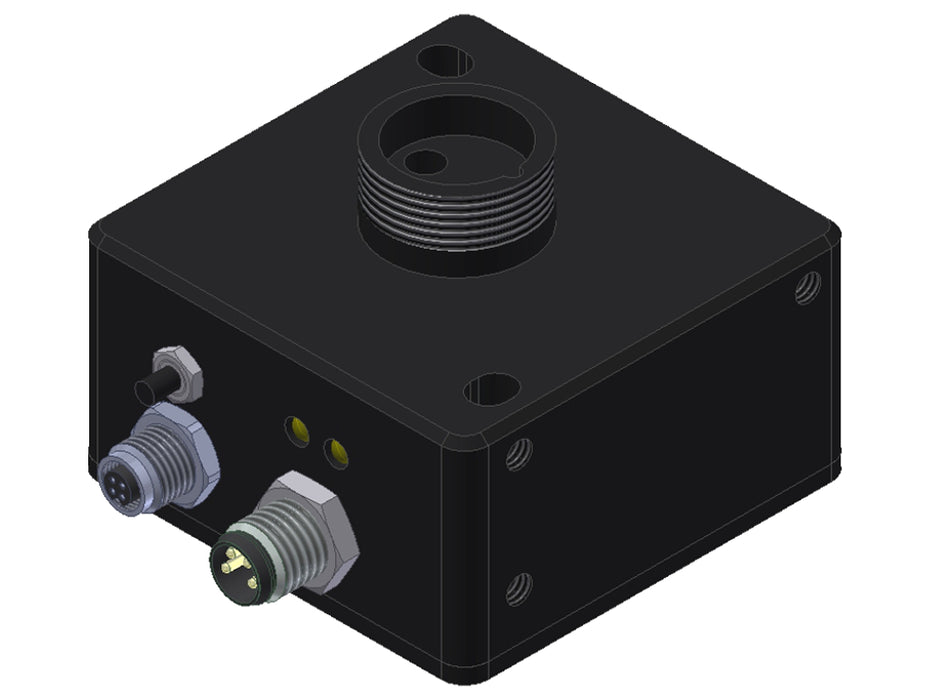

SPECTR0-3-FIO-UV-SL True Color Sensors [Slim Line]

Product Description

The SPECTRO-3-FIO-UV-SL is a UV-based, fiber-optic true color sensor that detects luminescent colors using a 375 nm UV LED and supports up to three taught colors or 64 in group mode. It offers a broad working range of 1 mm to 500 mm (depending on fiber and optics), with high-speed performance featuring a 60 kHz switching frequency and up to 85 kHz scan rate. The sensor employs a 3-channel color filter detector that mimics human color perception and includes features like adjustable gain, averaging, and multiple evaluation modes including “BEST HIT.” It has a durable anodized aluminum housing and operates in temperatures from -4°F to 131°F (-20°C to +55°C), with configuration handled via PC software over RS232, USB, or Ethernet. Compatible with a wide selection of UV fiber optics and attachment optics, it is ideal for precise and flexible color detection in industrial environments.

SPECTR0-3-FIO-UV-SL True Color Sensors [Slim Line]

Price dependent upon specification — inquire below

View data sheet

Product Highlights

• Big working range: typ. 1 mm ... 500 mm
• (depends on the fiber optics used and attachment optics)
• Various UV fiber optics (reflected light operation) and
• attachment optics available
• Up to 3 colors (max. 64 colors in GROUP mode) can be taught
• RS232 interface (USB or Ethernet converter is available)
• UV LED, 375 nm (AC-/DC-operation or
• OFF for luminous objects can be switched)
• Detection of different luminescent colors
• Insensitive to outside light (in AC-operation)
• Brightness correction can be activated (STAT/DYN)
• Scan frequency max. 85 kHz (in DC- or OFF-operation)
• Switching frequency typ. 60 kHz
• TEACH via PC or teach button
• Various evaluation algorithms can be activated
• “BEST HIT“ mode (“human color assessment“)
• Switching state indication by means of 2 yellow LED
• Parameterizable via Windows® software, scope function
• Temperature compensated
• Averaging can be activated (from 1 up to over 32000 values)
• 3-color filter detector (true color detector: “human color perception “)
• Compact aluminum housing
