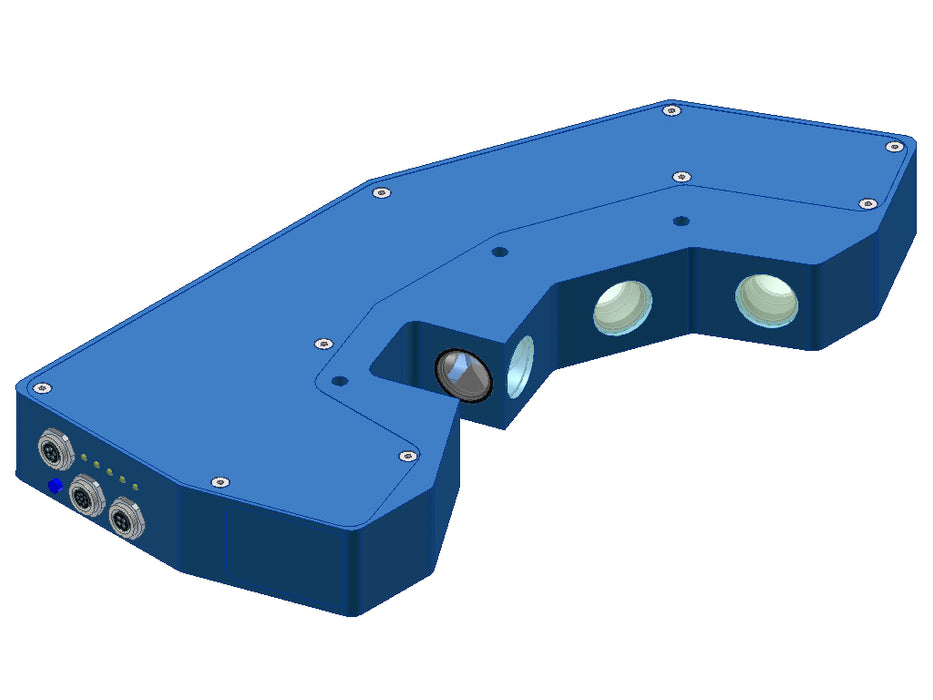

RLS-GD-20/20° Gloss Detection Sensor

Product Description

The RLS-GD-20/20° Gloss Detection Sensor is a high-precision optical sensor designed to measure the gloss level of surfaces with unparalleled accuracy. Engineered for industrial applications, this sensor ensures real-time quality control for materials like plastics, ceramics, leather, and metals. With advanced dual-angle detection and adaptable evaluation algorithms, it delivers precise gloss measurements for high-gloss surfaces, making it an essential tool for manufacturing, quality inspection, and research applications.

RLS-GD-20/20° Gloss Detection Sensor

Price dependent upon specification — inquire below

View data sheet

Product Highlights

• 20° gloss measurements (for high-gloss surfaces)
• Insensitive to outside light due to clocked white light
• 2 receivers (20°, 60°) and reference
• Storing of up to 31 gloss degrees
• Tolerance adjustable for each gloss degree
• Working distance typ. 15 mm ± 10%
• Parameterisable under Windows®
• RS232 interface (USB or Ethernet converter is available)
• 5 switching outputs (npn-/pnp-able, 100 mA, short circuit proof)
• Switching state indication by means of 5 yellow LEDs
• Transmitter power adjustable or controllable (STAT or DYN)
• Averaging can be activated (over up to approx. 32000 values)
• Calibration function (Wood’s glass)
• Various evaluation algorithms (standardized or calibrated onto Wood’s glass = 100%)
• 2 analog outputs (0...+10V and 4...20mA, proportional to the gloss degree 0%...100% or zoomed via zoom function)
• 1 digital input for teaching
• Scratch-resistance optics cover made of glass, sturdy aluminum housing
