Product Description

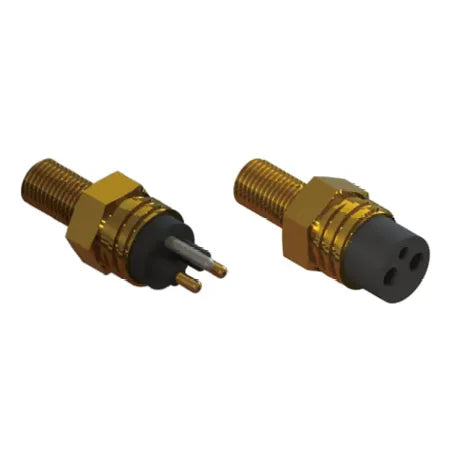

The PSE234 is a Micro Circular G2 Bulkhead Wet-Mate Underwater Connector for panel/pressure housing mount in subsea systems.

Available contact configurations: 2, 3, 4 contacts

Electrical/environmental performance: up to 300 VDC; current ratings 5A / Max. current @connector / 20A; depth rating 8700 PSI (600 bar) (4350 PSI (300 bar) for PEEK); temperature range --40°F to 140°F (-40°C to 60°C)

Construction highlights: chloroprene rubber body, gold-plated contacts, socket: Gold plated Beryllium copper, bulkhead materials: Brass(BR), stainless steel 316(SS), anodized. Sealing uses O-rings (NBR 2-014).

Best suited for power/signal interconnects where reliability under pressure and corrosion resistance are required.

Applications:

• Aquaculture monitoring and subsea infrastructure
• Junction boxes and subsea distribution nodes
• Oceanographic monitoring packages (CTD, current meters, data loggers)
• Offshore wind / marine energy subsea equipment (monitoring, control, junction boxes)
• Pressure housings and subsea enclosures (bulkhead feedthroughs)
• ROV/AUV power and control interconnects
• Sonar/hydrophone arrays and acoustic systems
• Subsea sensor and instrumentation connections
• Test tanks, R&D rigs, and subsea prototyping
• Underwater cameras, lighting, and inspection tooling
