Product Description
The Paquin P50 Mechanical Pressure Switch offers high-performance pressure monitoring in a compact, field-adjustable design. Engineered for durability and versatility, it features a robust construction with stainless steel or brass options, a wide operating pressure range, and selectable switch contact types. Ideal for demanding industrial and mobile applications, the P50 ensures reliable pressure control with simple manual adjustment and long service life.
Instructions
P50 Hand Adjustable Pressure Switch
Price dependent upon specification — inquire below
Product Highlights
- Adjustable operating pressure from 725 to 7,250 psi, covering a broad spectrum of applications
- Users can fine-tune the switch point manually via the housing barrel, eliminating the need for tools or disassembly
- Available with SPST-NO, SPST-NC, or SPDT changeover contact types for flexible circuit integration
- Rated for 10A @ 250 VAC and 4A @ 30 VDC, supporting both AC and DC systems
- Designed for 1 million mechanical cycles and 50,000 electrical cycles, ensuring long-term reliability even in high-demand environments
- IP65/IP67-rated enclosures offer protection against dust and water ingress, suitable for harsh environments
- Operational in extreme conditions from -58°F to 266°F (varies by sealing material)
- Withstands 11,600 psi overpressure and 14,500 psi burst pressure, providing robust protection in high-pressure systems
- Constructed with brass or stainless steel bodies and NBR, FKM, HNBR, or EPDM sealing materials for fluid compatibility

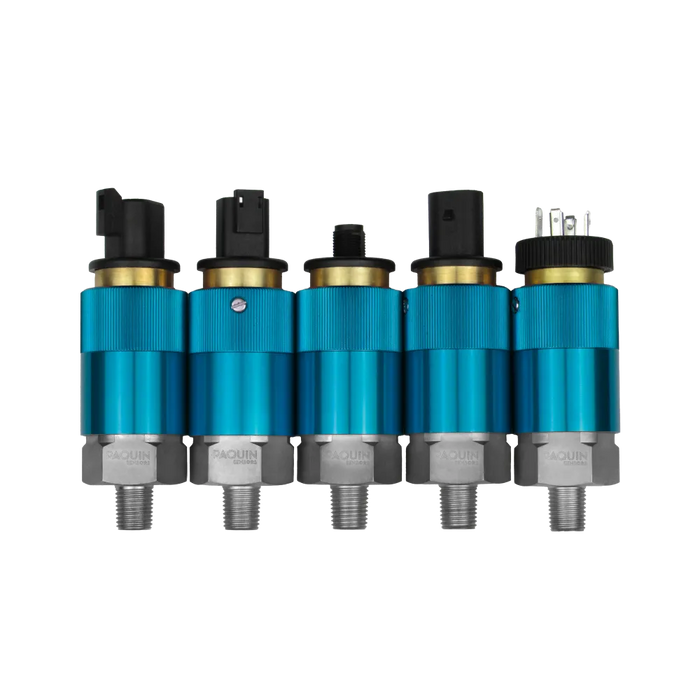

- Offers various terminal types including DIN 43650A, M12x1, AMP Superseal, and Deutsch DT with optional mating connectors, allowing plug-and-play compatibility
