Product Description
The P47 is a robust thermocouple designed for industrial applications, featuring a compensated M12x1 male metal screw connector for secure and reliable installation. Its IP67-rated design ensures excellent protection against environmental factors, while its compatibility with both single and double sensing elements provides versatility for various temperature measurement needs. Available in different lengths and diameters, the P47 is a dependable solution for demanding environments. Available type J and type K.

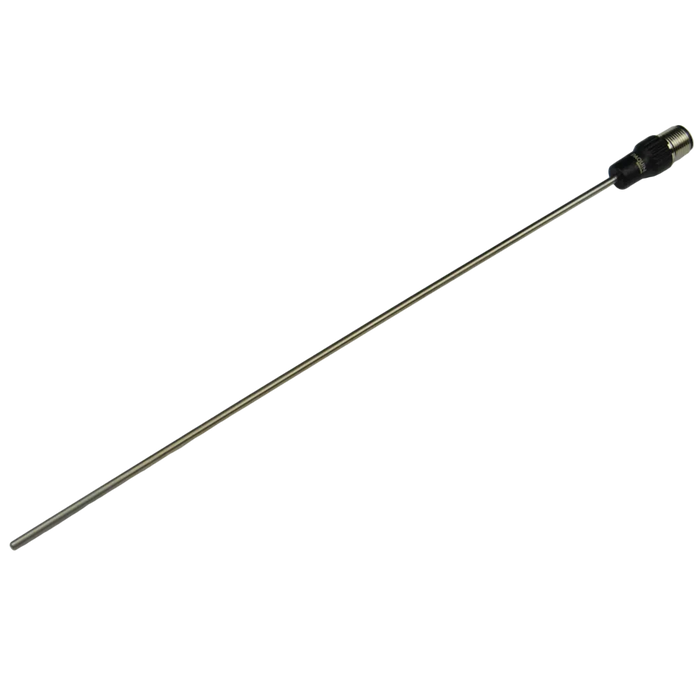

P47 Mineral Insulated Type J & Type K Temperature Thermocouple with Compensated M12 Connector
Price dependent upon specification — inquire below
Product Highlights
- Fully sealed against dust and water ingress for superior durability in industrial settings
- Features a threaded 4-pole M12x1 male connector, offering secure, vibration-resistant connections
- Operates up to 1112°F (600°C) for Type J and 2102°F (1150°C) for Type K applications
- Supports single or double thermocouple elements for flexible configuration for standard or redundant temperature sensing needs
- Durable mineral-insulated cable design ensures longevity and resistance to high pressure, vibration, and thermal cycling
- Customizable probe lengths & diameters and with standard probe lengths 250 mm, 500 mm, 1000 mm, and 1500 mm, with custom options also available
- Flexible probe bending radius
- Type J uses AISI 304, while Type K uses INCONEL 600, offering options for various temperature and chemical environments
- Conforms to ANSI MC96.1 and IEC 584, ensuring compatibility with global instrumentation
- Rated at 100 MΩ @ 100 VDC, minimizing signal interference over long cable runs
