Product Description
The P44 thermocouple is a highly reliable, multifunction temperature sensor designed for diverse industrial applications. Built with a compact mineral-insulated construction (M.I.C.), it offers exceptional robustness and performance in harsh environments. Its versatile design supports various diameters and lengths, making it adaptable to a wide range of temperature measurement tasks.

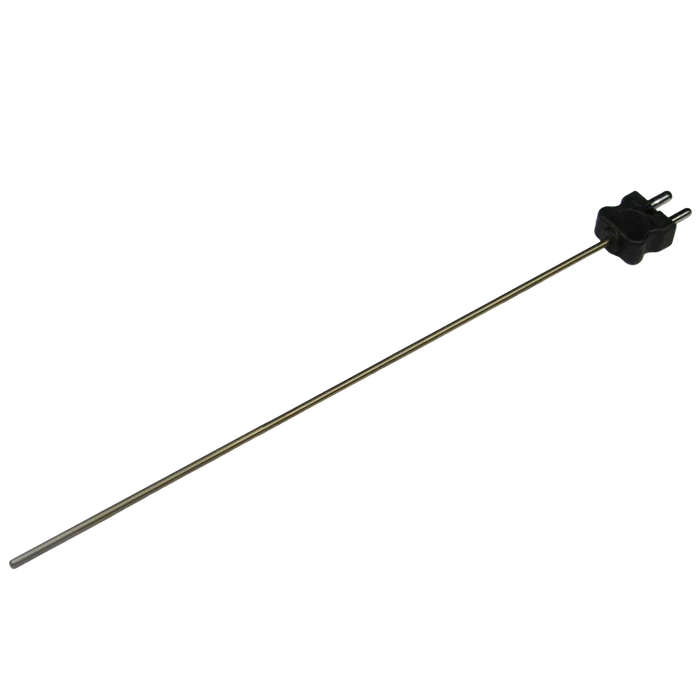

P44 Mineral Insulated Type J & Type K Temperature Thermocouple with Compensated Connector
Price dependent upon specification — inquire below
Product Highlights
- High temperature capability type K withstands up to 2102°F (1150°C), and Type J up to 1112°F (600°C) — ideal for extreme industrial conditions
- Compact mineral-insulated construction durable M.I.C. design ensures stability, robustness, and consistent performance even under vibration, pressure, or thermal cycling
- Customizable probe length & diameter range from 150 mm to 1500 mm, with diameters from 2 mm to 8 mm, supporting flexible integration
- Bendable probe design minimum bend radius is just 3× the outer diameter, allowing installation in tight or curved spaces without damaging the sensor
- Insulated hot measuring junction enhances signal stability and minimizes electrical noise, ideal for sensitive measurement environments
- Standardized, molded polyamide connector with max temp rating of 392°F (200°C) ensures reliable and durable electrical contact
- Single-element precision engineered with a single sensing element for accurate, pinpoint temperature detection without signal averaging
- Complies with ANSI & IEC standards meets ANSI MC96.1 and IEC 584 norms, ensuring global compatibility and dependable calibration
- High insulation resistance rated at 100 MΩ @ 100 VDC, ensuring minimal leakage and maintaining signal integrity over long cable runs
- Trusted in diverse environments such as generators, compressors, HVAC-R, CNC machines, skid packages, and test benches
