Product Highlights

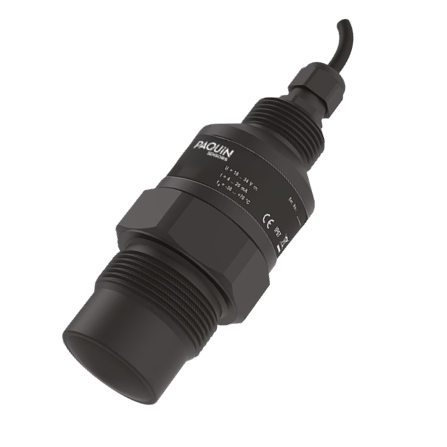

• Non-contact radar measurement Measures liquids and pasty substances without contacting the process medium, reducing maintenance and eliminating wear from direct exposure
• Measuring ranges up to 65.6 ft Available in 1.0–26.2 ft (0.3–8 m) and 1.0–65.6 ft (0.3–20 m) configurations to accommodate a wide range of vessel sizes
• High measurement accuracy Provides basic accuracy of approximately ±0.12 in (3 mm) from 3.3 ft (1 m) through the sensor’s maximum measuring range
• Intelligent false-reflection suppression Advanced signal processing helps eliminate interference from internal tank structures and unwanted reflections
• High measurement accuracy Provides basic accuracy of approximately ±0.12 in (3 mm) from 3.3 ft (1 m) through the sensor’s maximum measuring range
• 4–20 mA output with HART® communication Two-wire operation simplifies installation while HART communication supports configuration, diagnostics, and integration with process-control systems
• Flexible top or bottom installation Threaded mounting options allow the sensor to be installed from the top or bottom of a tank, as illustrated by the application diagrams on page 4
• Protected, covered antenna design The compact funnel antenna includes a protective cover that helps prevent dirt, vapors, and gases from entering the antenna and affecting performance
• Independent of process conditions Measurement is not affected by medium properties, atmospheric temperature, pressure above the surface, aggressive vapors, or vacuum conditions
