Product Description
The P186-625, available in 13 pressure ranges (from -4...6000 mbar), is suitable for liquids and gases. Body materials are available in plastic, brass and aluminum and with a choice of NBR, FPM, EPDM and silicone wetted diaphragms. The P186-625 provides high precision through finely tuned measurement stages and high long-term stability. It can be delivered with one or two switch points. The rugged design makes it especially suitable for use in general industrial equipment, construction, process technology and food automation.
Instructions

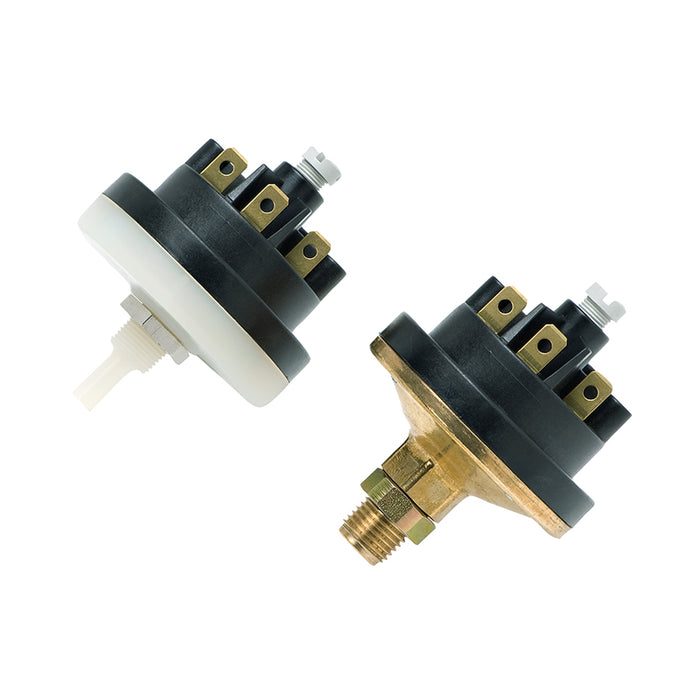

P186-625 Mechanical Vacuum / Low Pressure Switch (-4...6000 mbar)
Price dependent upon specification — inquire below
Product Highlights
- Wide Pressure Range: Operates from -4 to -900 mbar for negative pressure and 2 to 6000 mbar for relative pressure, accommodating diverse applications
- Adjustable Switching Points: Factory-set or field-adjustable switching points offer versatility for precise pressure monitoring
- High Accuracy: Maintains switching point reproducibility with a precision of ±0.3 mbar for NBR and silicone diaphragms
- Durable Construction: Available in fibreglass-reinforced plastic, aluminum, and nickel-plated brass for reliable performance in demanding environments
- Multiple Diaphragm Materials: Choose from NBR, EPDM, FPM, or silicone diaphragms to suit various media and temperature requirements
- Broad Temperature Range: Operates effectively between -40°F to +176°F (-40°C to +80°C) depending on diaphragm material
- Versatile Electrical Connections: Compatible with screw terminals, AMP tab connectors, or PG11 cable glands
- Compact and Lightweight: Weighs as little as 70g for plastic models, enabling easy integration into equipment
- IP54 Protection: Optional cover provides IP54-rated protection against dust and splashes, enhancing longevity
- Cost-Effective Performance: Combines robust design with competitive pricing, making it a preferred choice for industrial applications
