Product Description

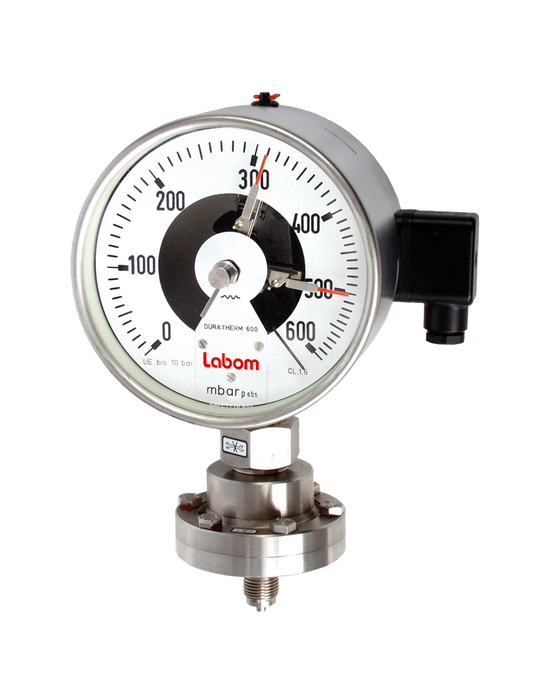

The P173 BE2 Series Diaphragm Pressure Gauge with Switch Contact is a high-precision, durable instrument designed for monitoring pressure in demanding industrial environments. Built with stainless steel and featuring a robust diaphragm, it ensures accurate readings while offering high overload protection. This pressure gauge is ideal for applications in general process technology, chemical and petrochemical industries, machinery construction, and shipping. Its integrated switch contact allows for automated monitoring and control, making it a reliable choice for critical pressure measurement needs
P173 BE2 Absolute Pressure Gauge (-14 PSI to 362 PSI) with Integrated Pressure Switch
Price dependent upon specification — inquire below
Product Highlights
- Absolute pressure measurement with visual gauge and integrated pressure switch
- Wide Pressure Range – Supports -1…0 bar to -1…24 bar and 0…25 mbar to 0…25 bar, covering a broad spectrum of industrial applications
- Superior Overload Protection – Standard protection of 5x (up to 100 bar) with an option for 20x overload capability
- Versatile Process Connections – Supports G 1/2 B, 1/2\" NPT, and open measuring flange designs, making integration easy in various systems
- Safety Certified – Meets ATEX, UKEX, and SIL2 classifications, ensuring compliance with industrial safety standards
- Customizable Options – Available with material certifications, calibration certificates, and additional temperature extensions, offering flexibility for specific industry needs
- Robust Environmental Protection – Rated IP 65 or IP 66, with an optional liquid-filled case for added durability in harsh conditions
- Extended Temperature Tolerance – Handles ambient temperatures from -40°F to 212°F (-40°C to 100°C) with special configurations available
- Safety Compliance – Available in an optional safety version (EN 837-1 S3) with a blow-out back and solid baffle wall for enhanced operator protection
- Wide Temperature Range – Operates effectively in ambient temperatures from -40°F to 212°F (-40°C to 100°C) and process media temperatures up to 302°F (150°C)
