Product Description

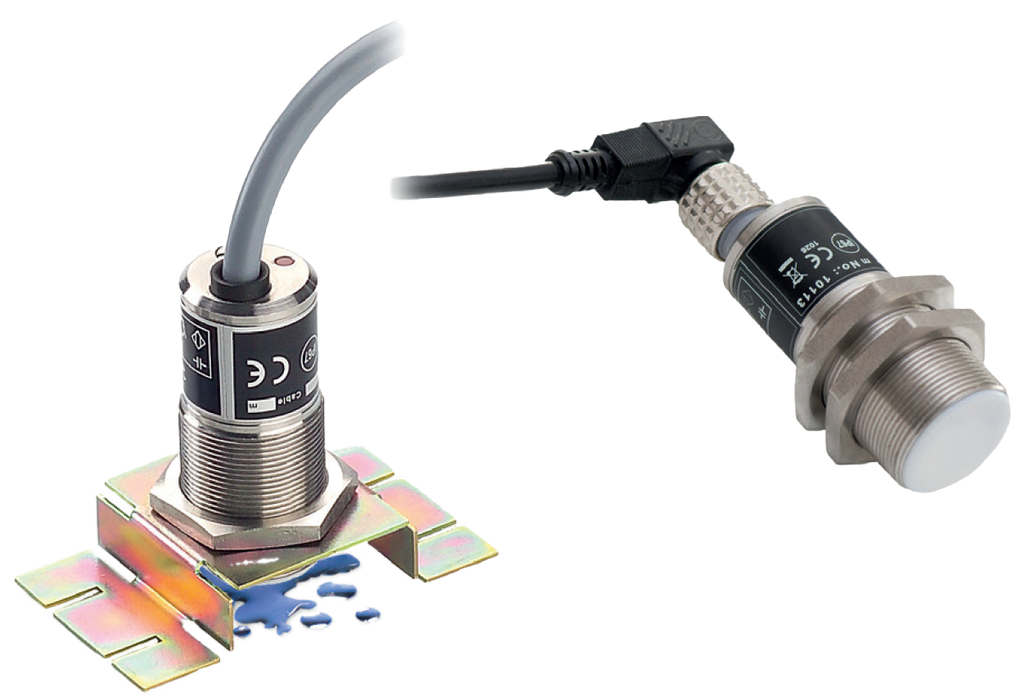

The P118 Electronic Level Switch is a compact and rugged capacitive sensor designed for highly reliable detection of liquids and solids in industrial settings. Engineered with a corrosion-resistant stainless steel housing and PTFE sensing surface, the P118 ensures precision level control in both standard and hazardous environments. Its adjustable sensitivity and flexible output options make it ideal for leak detection, level monitoring, and material sensing—even in challenging conditions like dust, chemicals, or explosive zones.
P118 Electronic Level Switch for Liquids and solids
Price dependent upon specification — inquire below
Product Highlights
- Detects both liquids and bulk solids, making it suitable for a wide range of applications from food processing to chemical refining
- Available with NPN, PNP, or NAMUR output types to match different control systems—including intrinsically safe NAMUR outputs for hazardous areas
- Fine-tune sensing from 0 to 10 mm, allowing adaptation to various material types and installation conditions
- Housed in corrosion-resistant stainless steel (W.Nr. 1.4301) with a PTFE sensing surface for excellent chemical resistance and longevity
- Integrated LED provides immediate visual status indication, enhancing installation ease and diagnostic clarity
- Ideal for monitoring inter-wall spaces, detention pits, and sumps—ensuring quick response to leak events
- Offers normally open (NO) or normally closed (NC) contact logic depending on whether it’s used for minimum or maximum level sensing—ensuring failsafe operation
- Available with short or long cable outlets, M12 connectors, plate holders, and distance crowns to fit a wide array of installation scenarios
- Certified for use in explosive atmospheres, including Zone 0 environments, following ATEX standards (EN IEC 60079-0:2018, EN 60079-11:2012)
- IP67 protection rating and operational temperature range from -4°F to 158°F (-20°C to 70°C) support reliable use in wet, dusty, or outdoor environments
Inquire about this product
Enter your information below to get in touch with our specialists, who will assist you in choosing the right configuration for your unique application.
