Product Description

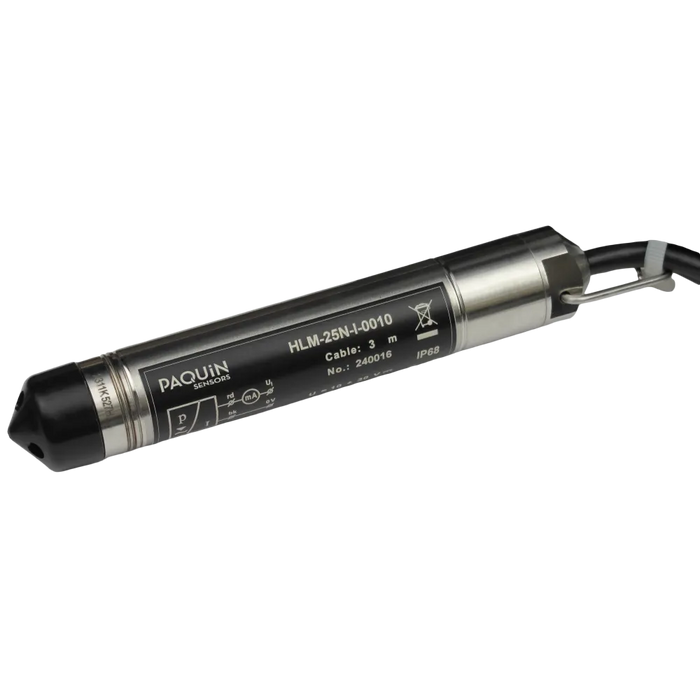

The P110 Hydrostatic Level Transmitter from Paquin Sensors is a rugged, stainless-steel probe designed for long-term submersion and precise liquid level monitoring in applications up to 656' of submersion. Engineered for reliability in demanding industrial and environmental applications, it offers accurate, maintenance-free operation with plug-and-play installation. Available with current or voltage output options, the P110 is ideal for use in freshwater, saltwater, wastewater, and other neutral liquids.
P110 Submersible Level Sensor up to 656' of Depth
Price dependent upon specification — inquire below
Product Highlights
- Ultra-Deep Submersion Capability Supports up to 656 ft (200 m) of liquid depth, exceeding typical industrial requirements
- Plug-and-Play Simplicity No calibration or setup required; simply hang the probe into the liquid and begin monitoring
- Dual Output Flexibility Choose between 4–20 mA current or 0–10 V voltage output, accommodating a wide range of control systems
- Built for Harsh Environments Features IP68-rated protection, making it suitable for permanent submersion in both indoor and outdoor installations
- Robust Stainless-Steel & Ceramic Build Constructed with AISI 316L stainless steel and a ceramic sensor, delivering long-term corrosion resistance and mechanical stability
- Precision Measurement Accuracy High stability and repeatability with basic errors as low as 0.2% of range and long-term drift of just 0.1% per year
- Excellent Temperature Performance Operates across a wide ambient range of -13 to 167°F (-25 to +75°C) depending on installation depth
- Overvoltage & Polarity Protection Built-in safeguards include reverse polarity, overcurrent, and transient overvoltage protection for safe integration into control systems
- Customizable Ranges & Cable Lengths Standard and custom measurement ranges and cable lengths are available for tailored application needs
- Ideal for a Broad Range of Liquids Optimized for chemically neutral fluids like freshwater, saltwater, and wastewater, supporting use in agriculture, utilities, and environmental monitoring
