Product Description
The LMA/LMF Low Pressure Switch is a highly reliable, compact pressure switch designed for precision control in industrial applications. Offering both field-adjustable (LMA) and factory-set (LMF) configurations, this switch ensures accurate pressure monitoring with a durable construction suited for demanding environments. With a snap-action switch, high durability, and multiple material and connection options, it delivers superior performance in hydraulic, pneumatic, and fluid control systems.

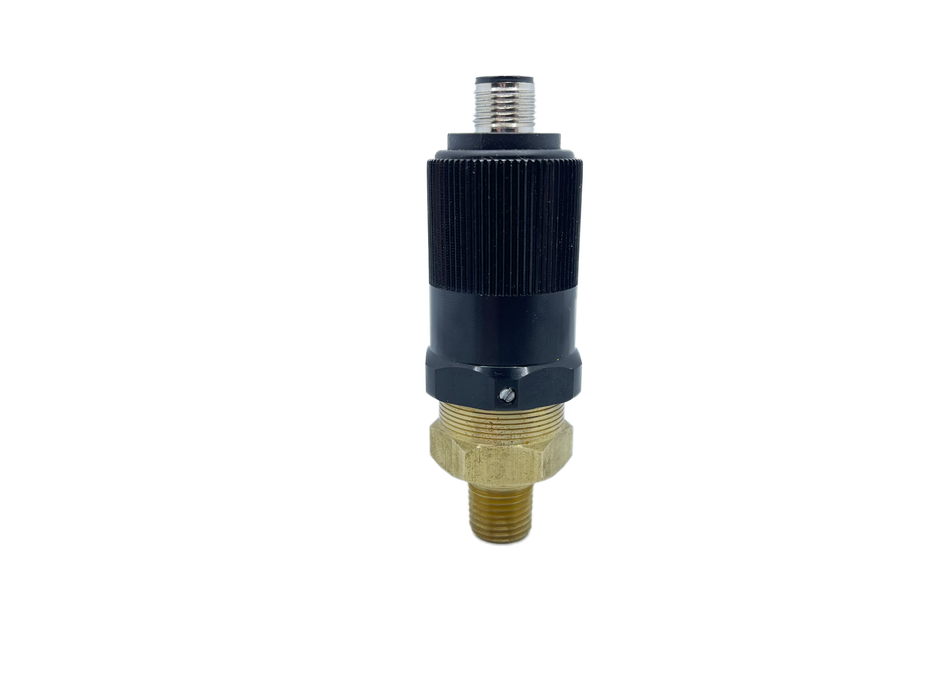

LMA/LMF Mechanical Low Pressure Switch
Price dependent upon specification — inquire below
Product Highlights
- Versatile Adjustment Options – Available in both field-adjustable (LMA) and factory-set (LMF) models for maximum flexibility
- Wide Pressure Range – Covers 5-150 PSI (0.35-10 Bar) with precise repeatability for critical applications
- Highly Durable Construction – Built with brass (standard) or 316 stainless steel (optional) housing for enhanced corrosion resistance
- Multiple Connection Options – Supports NPT, BSPP, SAE, and M-threaded ports to fit a variety of system requirements
- Reliable Electrical Ratings – Standard 10A, 125/250VAC or 12/24VDC UL-recognized, with optional gold contacts for low-power applications
- Superior Environmental Protection – Rated IP00 to IP69, depending on terminal selection, ensuring protection in harsh conditions
- Long Mechanical Life – Engineered for 1,000,000 switch cycles, reducing maintenance and increasing reliability
- Broad Temperature Compatibility – Operates from -40°F to +302°F (-40°C to 150°C) based on diaphragm material selection
- Multiple Diaphragm Options – Available in Buna-N, EPDM, VITON®, KAPTON®, and Low Temp Nitrile to suit different media
- High Overpressure Tolerance – Withstands up to 350 PSI (24 Bar), ensuring safety and durability under extreme conditions
