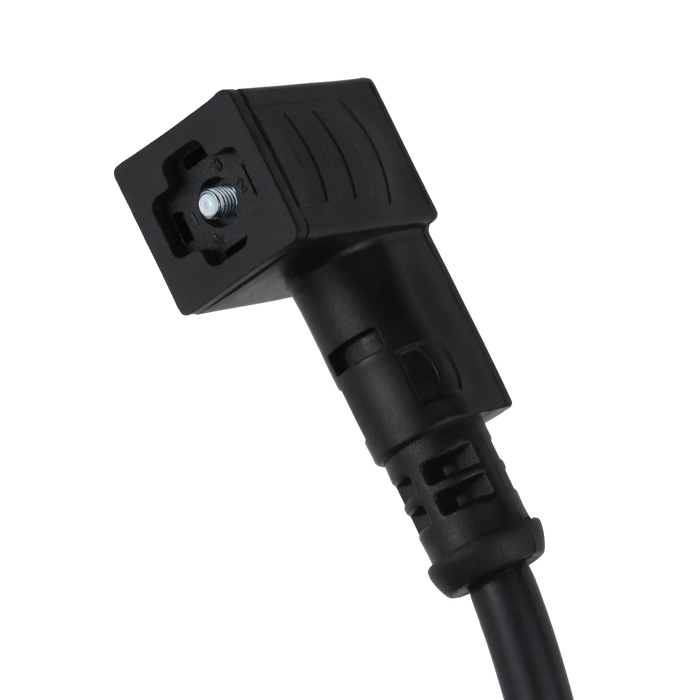

DIN 43650-C Shielded Overmolded PVC Cable Assembly
Price dependent upon specification — inquire below
Product Description
This DIN 43650-C shielded overmolded PVC cable assembly has a black connector with 4 contacts, 9.4 mm contact spacing, and an integrated NBR gasket. It supports 250 VAC / 300 VDC ratings and uses 20 AWG / 0.5 mm² conductors with stripped and tinned ends.
DIN 43650-C Shielded Overmolded PVC Cable Assembly
Price dependent upon specification — inquire below
Product Highlights

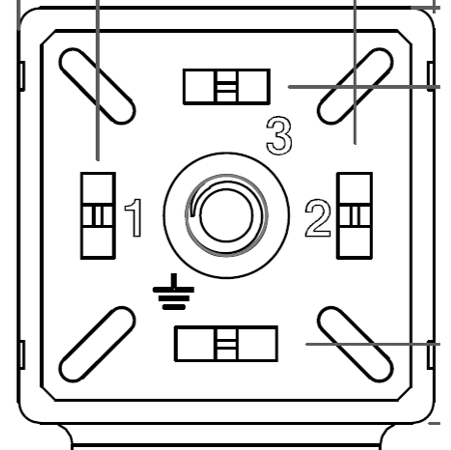

- 4 contacts with 9.4 mm spacing
- 3 poles + Earth conductor configuration
- Ground pin positioned at 6 o’clock
- 20 AWG / 0.5 mm² conductor size
- Rated voltage: 250 VAC / 300 VDC
- IP65 rating
- M3 x 0.5 central fixing screw, L = 22.5 mm
- Conductor ends stripped back 5 mm and tinned
- Available Lengths: 1 meter, 3.5 meters, 5 meters, 7.5 meters, 10 meters, and 20 meters
