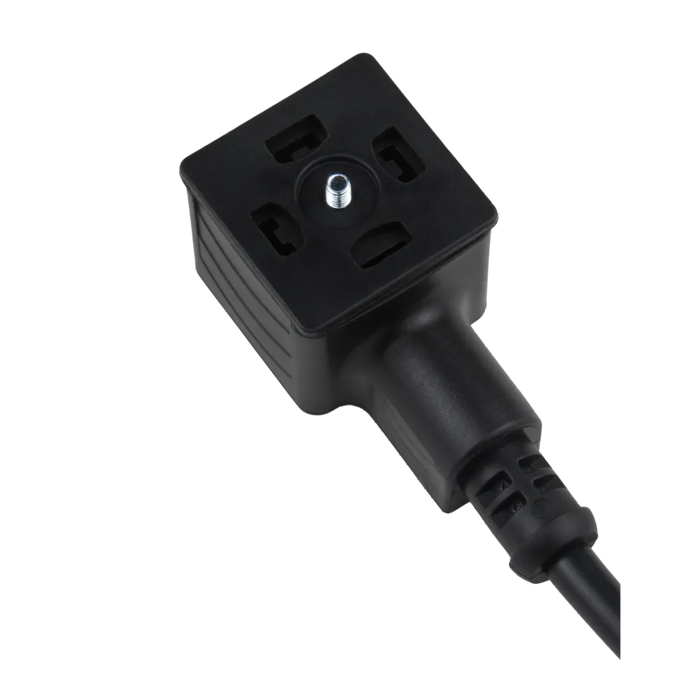

DIN 43650-A Unshielded Overmolded PVC Cable Assembly
Price dependent upon specification — inquire below
Product Description
This DIN 43650-A overmolded PVC cable assembly uses an unshielded black connector with 4 contacts, 18 mm contact spacing, and integrated NBR gasket material. It is rated for 250 VAC / 300 VDC, uses 20 AWG / 0.5 mm² conductors, and is available in multiple cable lengths from 1 to 20 meters.
DIN 43650-A Unshielded Overmolded PVC Cable Assembly
Price dependent upon specification — inquire below
Product Highlights
- 4 contacts with 18 mm spacing
- 3 poles + Earth conductor configuration
- Ground pin positioned at 6 o’clock
- 20 AWG / 0.5 mm² conductor size
- Rated voltage: 250 VAC / 300 VDC
- IP65 rating
- Cable jacket stripped back 35 mm
- Conductor ends stripped back 5 mm and tinned
- Available Lengths: 1 meter, 3.5 meters, 5 meters, 7.5 meters, 10 meters, and 20 meters
