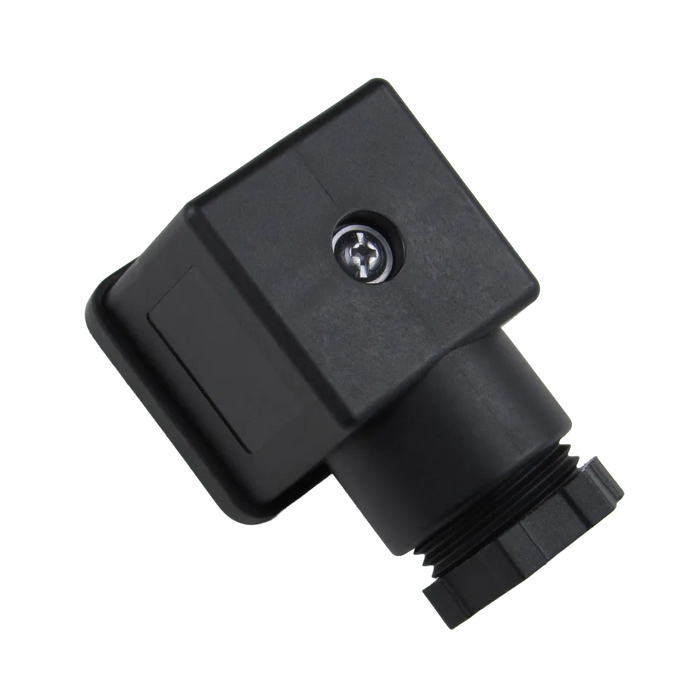

DIN 43650-A Female Field Wireable Connector with Cable Gland PSE14
Price dependent upon specification — inquire below
Product Description
The PSE14 DIN 43650-A female field wireable connector features a black PA6 GF30 body with an M20 x 1.5 mm cable gland for 6–8 mm cable diameters. Designed for 3 + PE connections, it supports AC/DC circuits up to 250 V +15%, 10 A maximum operating current, and IP65 protection.
DIN 43650-A Female Field Wireable Connector with Cable Gland PSE14
Price dependent upon specification — inquire below
Product Highlights
- M20 x 1.5 mm cable gland thread
- 3 + PE poles with 18 mm contact distance
- Ground pin positioned at 6 o’clock
- CuZn, tin-plated contacts
- NBR black profile gasket
- Rated for 0–250 V +15% AC/DC
- Maximum operating current: 10 A
- IP65 protection and ISO 4400 compliance
