DIN 43650-C Female Field Wireable Connector with Cable Gland PSE96
Price dependent upon specification — inquire below
Product Description

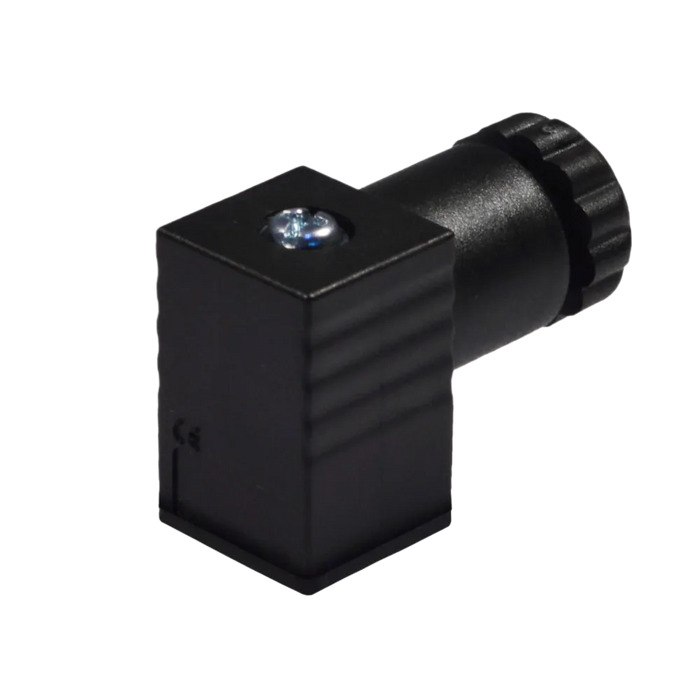

The Paquin PSE96 is a DIN 43650-C female field wireable connector with a PG7 cable gland for 4–6 mm cable diameters. This black PA66 connector is rated IP67 and supports 250 VAC / 300 VDC circuits, making it suitable for electrical connectivity applications requiring a compact DIN 43650-C connector with screw contacts.
DIN 43650-C Female Field Wireable Connector with Cable Gland PSE96
Price dependent upon specification — inquire below
No data sheet available for this product — contact our team to learn more.
Product Highlights
- PG7 cable gland thread
- Accepts 4–6 mm cable diameter
- Black PA66 connector material

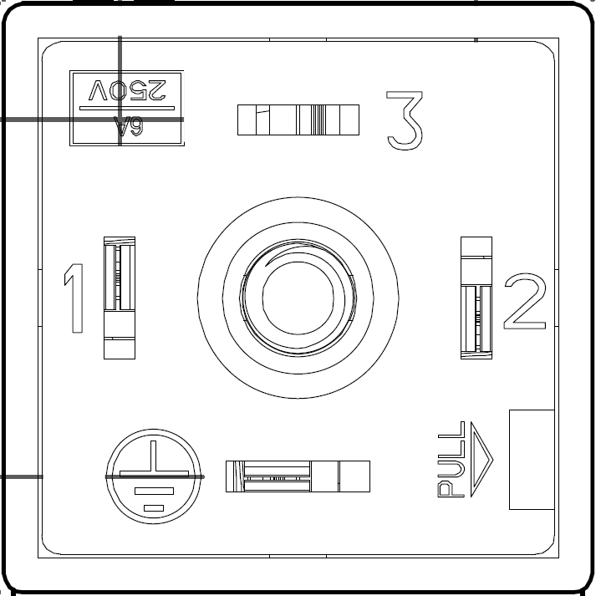

- 3 + Earth poles with 9.4 mm contact distance
- Ground pin positioned at 6 o’clock
- CuZn, tin-plated screw contacts with protection plate
- NBR black profile gasket
- Rated for 250 VAC / 300 VDC
- IP67 protection
