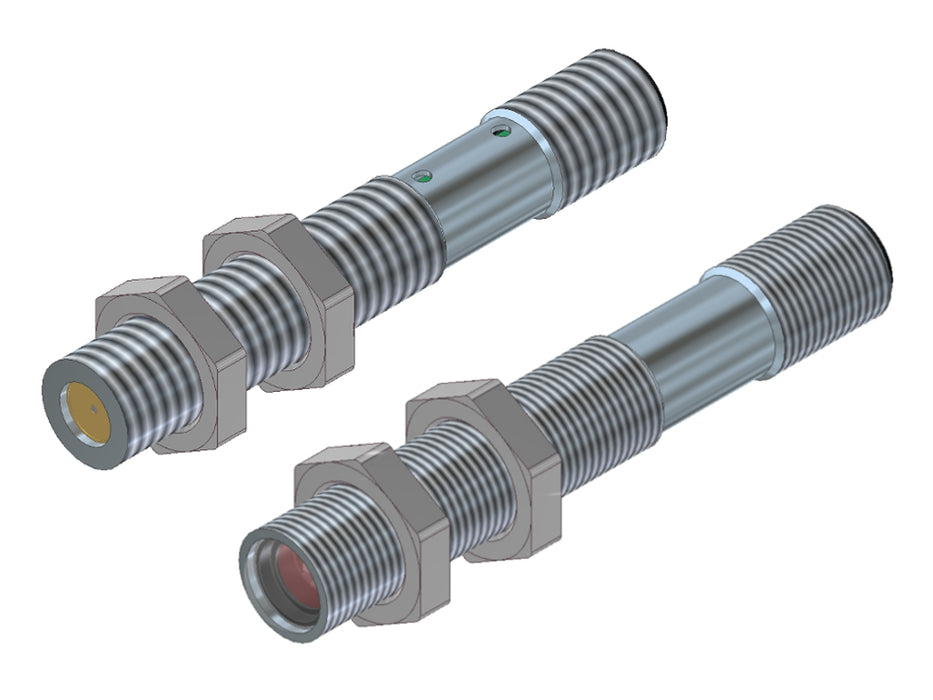

D-LAS2-LC Laser Digital Light Barrier

• Visible laser beam (<0.4 mW, 670 nm), laser class 1
• Transmitter with aperture Ø 1 mm
• Receiver with collecting lense (plano-convex)
• Interference filter
• High reproducibility (in μm-range)
• Working range up to 10 m
• High switching frequency (typ. 25 kHz)
• Analog output (0V...+10V)
• Switching output (npn + pnp)
• Optics cover made of glass
• Sturdy housing made of brass, nickel-plated
• Compact design (M12)
