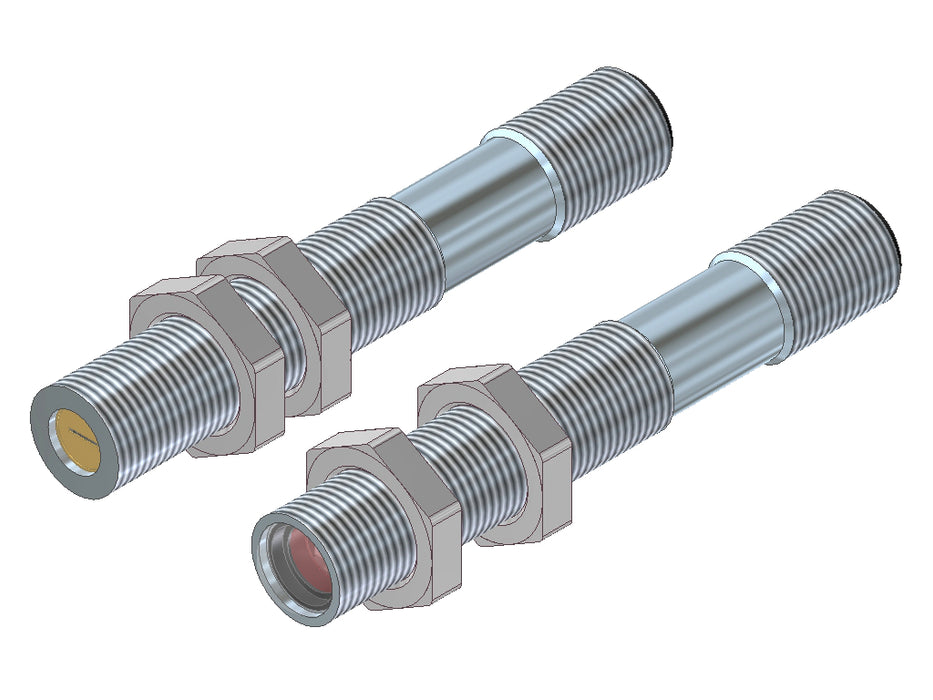

D-LAS2-HS-... Laser Digital Light Barrier

Price dependent upon specification — inquire below

Product Highlights

• Visible laser beam (<0.4 mW, 670 nm), laser class 1
• Extremely high switching frequency (typ. 300 kHz)
• Various apertures available
• Receiver aperture alternatively with collecting lense or with particular lense for more accurate switching point
• Interference filter
• High reproducibility (in μm-range)
• Analog output (0V...+10V)
• Switching output (npn + pnp)
• Optics cover made of glass
• Sturdy housing made of brass, nickel-plated
• Compact design (M12)
