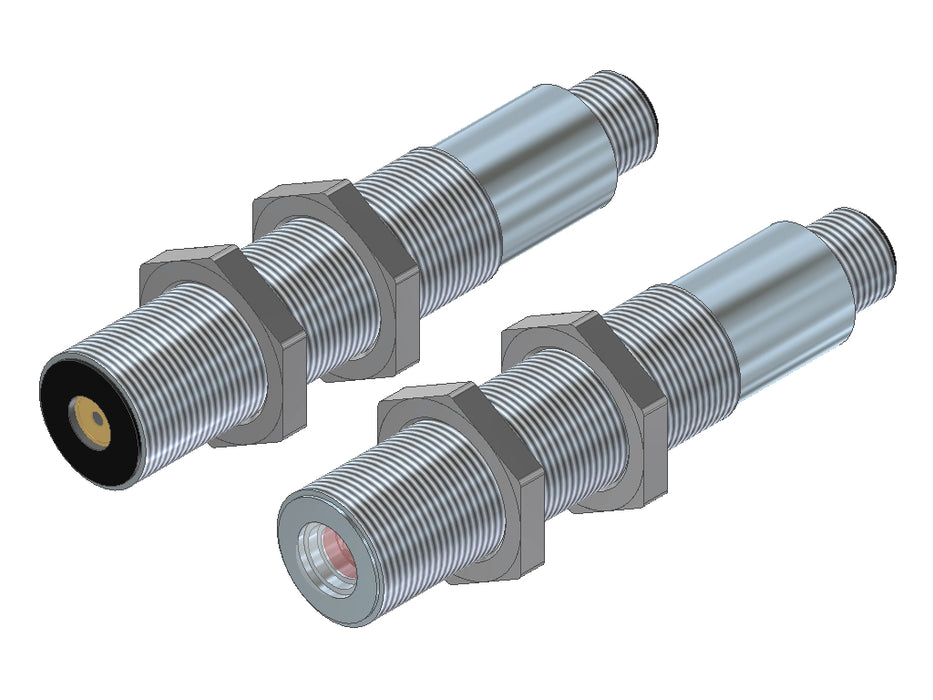

D-LAS1-LC-... Laser Digital Light Barrier

Product Description

The D-LAS1-LC Laser Digital Light Barrier is a high-precision optical sensor designed for industrial applications requiring reliable object detection. With a visible laser beam, compact M18 design, and durable IP67-rated brass housing, this sensor ensures accurate measurements even in challenging environments. Its long working range, fast switching frequency, and high reproducibility make it ideal for precision positioning and quality control tasks.

D-LAS1-LC-... Laser Digital Light Barrier

Price dependent upon specification — inquire below

View data sheet

Product Highlights

• Visible laser beam (<0.4 mW, 670 nm), laser class 1
• Transmitter with round aperture Ø 1 mm
• Receiver with plan-convex lens
• Big working range (up to 8 m)
• High reproducibility (in μm range)
• High switching frequency (5 kHz)
• Analog output 0V...+10V
• Switching output (npn or pnp)
• Optics cover made of glass
• Sturdy metal housing (brass, nickel-plated), IP67
• Compact design (M18)
