Product Description
The Paquin P62 Temperature Transmitter is a compact, mineral-insulated (MgO) sensor designed for industrial temperature monitoring up to 662°F. With a bendable stainless steel probe, IP67-rated housing, and configurable 4–20mA or 20–4mA output, the P62 offers high durability and customization. Ideal for demanding environments, the sensor is reverse-polarity protected and supports zero/span adjustments via an optional programming kit.

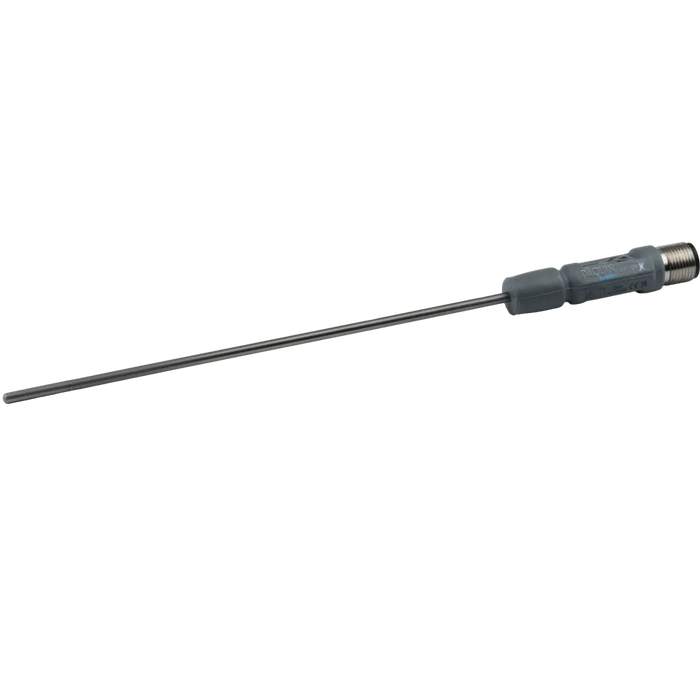

P62 Mineral Insulated Temperature Transmitter, PT100 with Programmable 4...20mA Ouptut
Price dependent upon specification — inquire below
Product Highlights
- Monitors temperatures from -58°F to 662°F (-50°C to 350°C), suitable for high-heat and low-temp industrial environments
- urable, flexible AISI 316L stainless steel probe allows for tight routing and installation in compact equipment
- Provides readings in <3.5 seconds for 3mm probes, enabling quick control adjustments
- IP67 Fully sealed, rugged design ensures protection against dust, water, and harsh industrial conditions
- Allows compatibility with various control systems and includes NAMUR NE43 fault signal support
- Configurable Output Signals (4–20mA or 20–4mA)
- Customize output range using the PSRC1 programming kit, enabling better integration into diverse applications
- Selectable lengths from 100mm to 1000mm and diameters of 3mm or 6mm, or specify custom lengths (≥50mm)
- Offers a wide range of thread options (1/8” to 1/2” NPT, G threads) for global system compatibility
- Reverse polarity protection & signal fault detection safeguards electronics from incorrect wiring and indicates sensor breaks or shorts via defined signal output
- Meets CE, UKCA, and RoHS standards built to rigorous EMC and safety compliance standards, ensuring long-term reliability in regulated industries
