Product Description

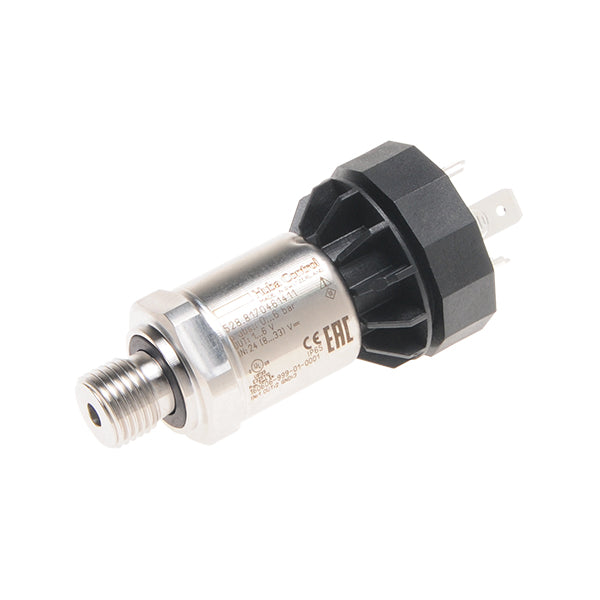

The P21-528 pressure transmitter is of the highest quality and therefor successful world-wide in applications such as for pressure control in water pipes and pumps in CDU (Coolant Distribution Unit), in-rack CDU as well as in in heat and water pumps. The P21-508 is also CE & UL approved for drinking water applications NSF/ANSI 61/372.
P21-528 Pressure Transmitter for HVAC, Refrigeration, Drinking Water Applications & more
Price dependent upon specification — inquire below
Product Highlights
- Wide Pressure Range – Measures both relative (-1 to 60 bar) and absolute (0 to 16 bar) pressures for versatile applications
- Robust & Compact Design – Constructed from stainless steel (AISI 316L) and built to withstand industrial environments
- High Accuracy & Stability – Features a 0.5% full-scale accuracy, ensuring reliable and precise readings
- Multiple Output Options – Supports 4-20 mA, 0-10 V, 0-5 V, and ratiometric 10-90% outputs for compatibility with different systems
- Broad Temperature Tolerance – Operates in medium temperatures up to 257°F (125°C) and withstands ambient conditions from -22°F to 185°F (-30°C to 85°C)
- Excellent Overload & Burst Protection – Handles up to 3x overload (for <4 bar) or 2.5x overload (for >4 bar) without compromising performance
- Multiple Pressure Connection Options – Available in G ¼, G ½, NPT, UNF, and M10x1 thread variants for seamless integration
- Quick & Secure Electrical Connections – Offers DIN, M12x1, Metri Pack, and Swift connector options for easy installation
- High Shock & Vibration Resistance – Withstands up to 100 g shock impact and vibrations up to 20 g at 2000 Hz, ensuring durability
- Certified for Safety & Compliance – Meets CE, UL ANSI/UL 61010-1, NSF/ANSI 61/372, and ATEX intrinsic safety standards for secure industrial use
