Product Description

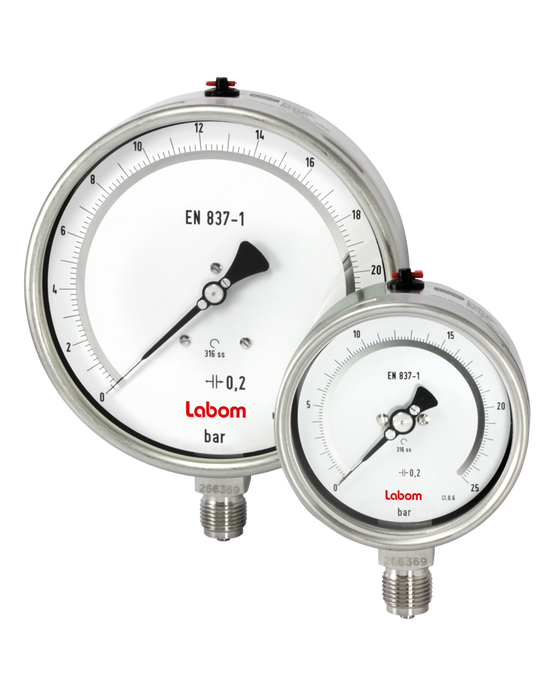

The P166 BA6 Series Bourdon Tube Pressure Gauge is a high-precision instrument designed for demanding industrial applications. Built with a stainless-steel case and measuring element, it delivers reliable and accurate pressure readings for gaseous, liquid, and aggressive media. Engineered to meet EN 837-1 safety standards, this gauge ensures durability and precision in environments such as machinery construction, chemical processing, and power generation.
P166 High Accuracy for Test & Measurement
Price dependent upon specification — inquire below
Product Highlights
- High-Precision Accuracy – Available in accuracy classes 0.6 and 0.25 (for NS 160), ensuring reliable pressure measurement
- Durable Stainless Steel Build – The case and measuring element are made of high-quality stainless steel for longevity and resistance to harsh conditions
- Wide Pressure Range – Supports measurements from -1…24 bar up to 0…600 bar, covering a broad range of applications
- IP 65 Protection Rating – Designed for industrial use, offering resistance against dust and water ingress
- Explosion Protection (ATEX/UKEX) – Certified for use in hazardous environments where explosion risks are present
- Multiple Mounting Options – Available with front or rear flange for flush or surface mounting to fit various installation needs
- Case Filling for Stability – Optional glycerine-water filling in NS 160 models for improved performance in high-vibration environments
- Blow-Out Safety Feature – Equipped with a rear blow-out device for enhanced operator safety per EN 837-1 S1
- Customizable Scale & Markings – Mirror scale with options for red markings, fixed reference pointers, and special scales upon request
- Versatile Process Connections – Compatible with G1/2 B, 1/2\" NPT, or M20 x 1.5 connections, with additional options available for system damping
