Product Description
The Paquin P108 Electronic Level Switch is a compact, submersible capacitive sensor designed for precise water level detection in both shallow and deep installations. Engineered with a rugged polypropylene housing and protective crown, it delivers reliable performance even under extreme depths of up to 328 feet (100 meters). The P108 offers a plug-and-play two-wire connection directly to relays or PLC inputs, eliminating the need for calibration and simplifying installation. Ideal for boreholes, sumps, tanks, and water treatment systems, it ensures long-lasting operation in harsh environments.

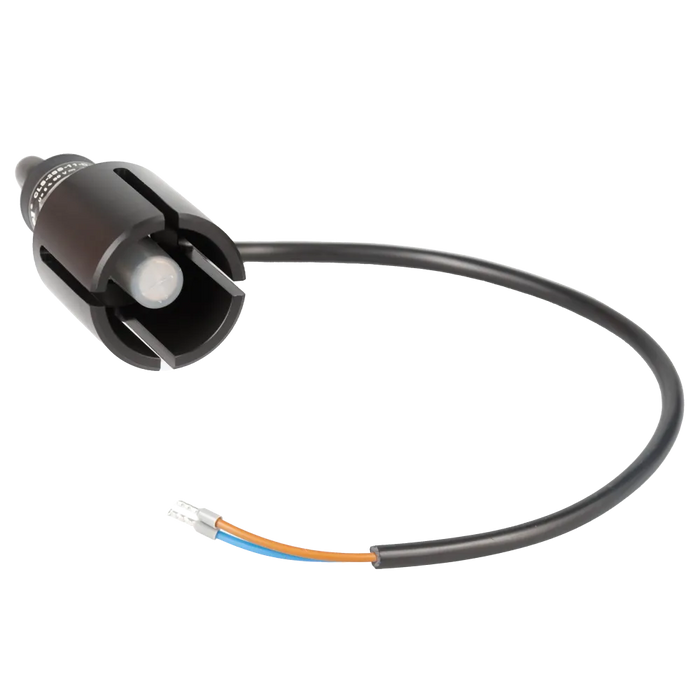

P108 Economical Submersible Liquid Level Switch
Price dependent upon specification — inquire below
Product Highlights
- Operates reliably up to 328 ft (100 m) immersion depth at 145 PSI (1 MPa), ideal for deep wells and tanks
- Handles temperatures from -4°F to 176°F (-20°C to +80°C), ensuring performance in both freezing and hot environments
- Plug-and-play wiring directly to relays or PLC binary inputs—no setup or calibration required
- Selectable normally open (NO) or normally closed (NC) output based on application needs, with smart failure-state design for safety
- Fully sealed and IP68 rated, built to remain functional under full submersion for extended periods
- Made from polypropylene (PP) for corrosion resistance in aggressive water or fluid media
- Built-in protections against short circuit, overvoltage, polarity reversal, and electrical shock
- Certified to EMC standards including EN 55011/B and EN 61326-1, ensuring stable operation even in noisy environments
- Shielded sensor tip design prevents damage or buildup on the sensing element, ensuring long service life and easier maintenance
- Weighing only ~0.44 lbs (~0.2 kg) without the cable, it is easy to handle, install, and suspend in vertical applications
