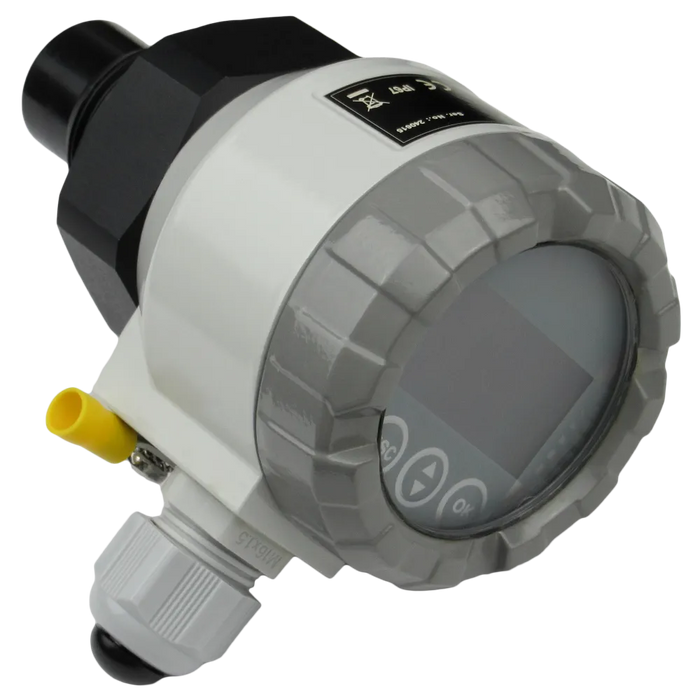

P103 Ultrasonic Level Sensor 4...20mA HART, RS-485 & with Ex Option
Price dependent upon specification — inquire below
No data sheet available for this product — contact our team to learn more.
Product Highlights
- For clean liquids, waste water, sludges, slurries, pastes, bulk solids
- 4...20mA, HART, RS-485
- For monitoring up to 65'
- Resolution from 1 to 2.5mm
- Mounting bracket available
- Operating frequency's from 30 to 120 kHz
- Damping adjustability from 1 to 99 seconds
- Process connections from 1\" to 2.25\"
Inquire about this product
Enter your information below to get in touch with our specialists, who will assist you in choosing the right configuration for your unique application.
Product Description
The P103 ultrasonic level meter is a compact measurement device including an electroacoustics converter, central processor unit and display module. Using the electroacoustics converter, the level meter transmits the sequence of ultrasonic pulses that spread towards the surface level. The converter recuperates reflected acoustic waves that are subsequently processed in
the electronic module. The intelligent evaluation block filters out interfering signals, compares the cleaned received signal with the false reflection map (e.g. from mixers, ladders, reinforcement etc.) and selects a suitable reflection (echo). Based on the period during which the individual pulses spread towards the surface level and back and based on the measured temperature in the tank, the instant distance to the surface level is calculated. According to the level height, the level meter output is set: :current 4 -20 mA with HART® protocol or output RS-485 Modbus and the measured value is displayed on the display.
The P103 is suited to measure the level of various liquid materials, sewerage waters, mash and paste materials, suspensions in closed or open vessels, sumps, reservoirs and open channels. In case the level of bulk solids is measured, the measurement range is reduced.
