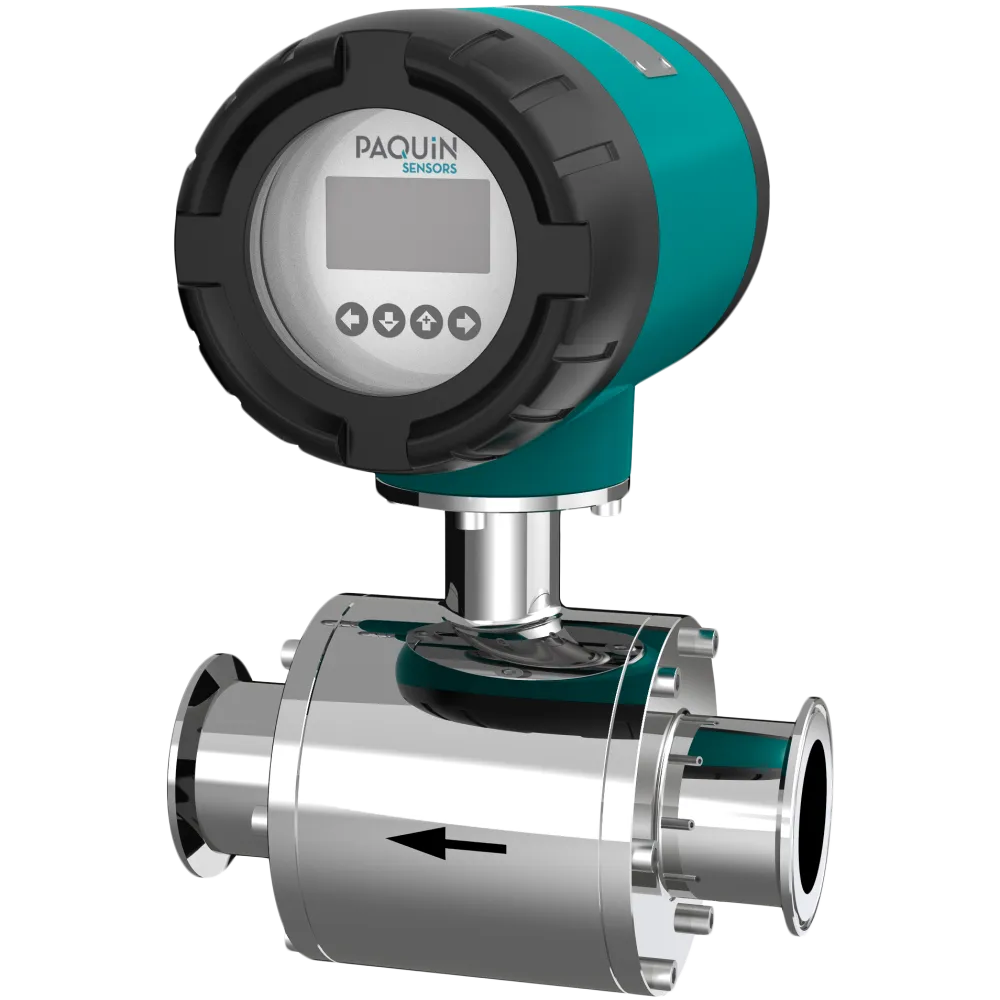

Paquin is spotlighting our P396 Sanitary Tri‑Clamp Electromagnetic Flow Meter (Or Magnetic Flow Meter) ideal for hygienic, no‑pressure‑loss flow measurement for conductive liquids, with flexible I/O, CIP capability, and Tri‑Clamp connections tailored to regulated process environments.
Accurate, no-pressure-loss flow measurement for conductive liquids with flexible I/O, materials, and connections built for tough industrial environments. View the P396 datasheet (PDF)
Built for: food & beverage, pharmaceutical/biotech, biomedical, and water process utilities.
Delivers: 00.5% accuracy, ±0.15% repeatability, bi directional measurement, no pressure loss, and on device diagnostics.
Integrates via: 4–20 mA, HART, RS 485/Modbus, 0–5 kHz pulse, and two isolated relays; integrated or remote transmitters.
The Problem The P396 Solves
Hygienic lines demand clean in place workflows, stable accuracy, and minimal pressure drop. Obstruction based meters can add ΔP and complicate cleaning. The P396 measures by induction meaning that there are no moving parts or constrictions so you maintain accuracy without pressure loss all while CIP ready construction and diagnostics keep signals trustworthy during sanitation cycles.
What’s New / Why It’s Different
-
Sanitary Tri Clamp portfolio: ASME BPE and ISO 2852 connections from 3/8″ to 4″ (DN10–DN100)
-
Process proven performance: 0.5% accuracy; ±0.15% repeatability; suitable for liquids > 5 µS/cm conductivity
-
Industrial grade connectivity: 4–20 mA + HART, RS 485/Modbus, 0–5 kHz pulse, and 2 relays (30 VDC/3 A; 250 V/3 A)
-
Rugged by design: IP65 protection; auto zero, empty/full pipe detection, self monitoring
-
Installs your way: integrated or remote electronics (optional 10 m cable)
Applications
- Food & Beverage: Syrups, brines, CIP return, and utilities where Tri Clamp and CIP ready design are mandatory
- Pharmaceutical / Biotech: Water systems and conductive process streams; choose PTFE/PFA liners and 316L wetted materials to match validation standards
-
Biomedical / Water Processing: Clean utilities and skids needing no pressure loss and reliable diagnostics
Key Specifications (snapshot)
| Parameter | Value |
|---|---|
| Measurement principle | Electromagnetic (conductive liquids) |
| Conductivity threshold | > 5 µS/cm |
| Flow range | 0.37 - 1244 gallons/minute |
| Pipe size range | 3/8″...4″ (DN10–DN100) |
| Accuracy | 0.5% |
| Repeatability | ±0.15% of reading |
| Outputs | 4...20 mA, HART, RS485 Modbus, 0–5 kHz pulse, 2 relays (30 VDC/3 A; 250 V/3 A) |
| Power | 85–265 VAC ±10% or 24 VDC ±10%, < 20 W |
| Display | Local display (instantaneous %/rate and total flow rate) |
| Ingress protection | IP65 (integrated); IP68 (remote) |
| Optional Ex-proof | Exd [ia Ga] qllc T5 Gb |
| Wetted Electrode options | 316L SS, Hastelloy B/C, Titanium (others on request) |
| Liner options | PTFE, PFA (others on request) |
| Process connections | ASME BPE Tri‑Clamp; ISO 2852 Tri‑Clamp |
| Electrical connection | M20×1.5 cable gland or ½″ NPT hub |
Connectivity & Integration
-
Integrated or remote transmitter configuration; optional 10 m sensor to transmitter cable
-
Communicates via 4...20 mA, HART, or RS485 Modbus, with pulse output; use relays for alarms/batching
Compliance & Environmental
-
CIP clean in place ready; designed to meet hygienic application mandates
-
IP65 enclosure; Ex proof option Exd [ia Ga] … T5 Gb available
- Wide Operating Conditions: Ambient −22…140 °F (−30…60 °C); Medium −4…212 °F (−20…100 °C)
Ordering & Availability
-
Model: P396, with selectable outputs, relays, electrode/liner materials, process connection material (304 or 316L), power, electrical entry, Tri Clamp size, and Ex proof option (see “Build Your Part Number”).
Download the data sheet (for full technical parameters and dimensions of the P396)
Visit the product page & request a quote - our team will help you select your exact build.
