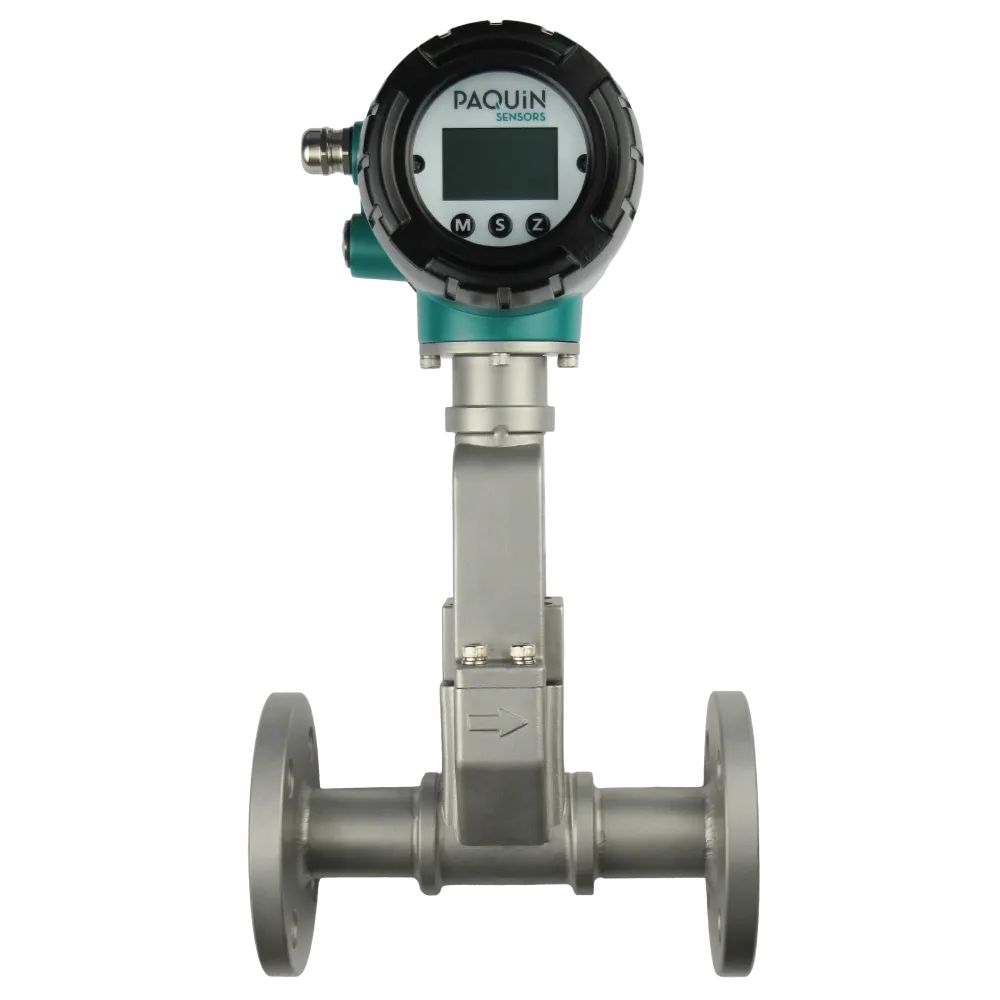

Paquin is spotlighting our P79 Vortex Flow Meter for liquids, gases, and steam, with minimal pressure loss, high temperature service, no moving parts, and industrial connectivity.
Built for: steam & energy monitoring, HVAC/process air, utilities/water, chemical, food & beverage, pharma, power, and pulp & paper
Delivers: ±0.75% (liquid) and ±1.5% (gas/steam) accuracy, LCD indication, and outputs including 4–20 mA + pulse, HART + pulse, or RS 485/Modbus
Integrates via: ANSI B16.5 flanges (Class 150/300/600) to 12″, EN 1092 1 flanges to DN300, wafer, NPT/BSPP threads
The Problem The P79 Solves
Plants need one meter that handles steam, compressed gases, and liquids without adding differential pressure or the maintenance burden of moving parts. P79’s vortex shedding principle provides a clean, obstruction free path that preserves pressure, while high temperature capability (up to 662 °F) supports demanding steam services.
What’s New / Why It’s Different
-
Media flexibility: one platform for liquid, gas, and steam
-
High temp design: medium −40…662 °F (−40…350 °C) option
-
Industrial grade I/O: 4–20 mA + pulse, HART + pulse, or RS 485/Modbus with on device LCD
-
Process ready connections: ANSI/EN flanges, wafer, and threaded ends
- Ruggedization & safety: IP65 protection and Exd II BT5 Gb option for hazardous areas
Key Specifications (snapshot)
| Parameter | Value |
|---|---|
| Media | Liquids, gases, steam |
| Accuracy | ±0.75% (liquids); ±1.5% (gases/steam) |
| Display | Integrated LCD |
| Flow range |
Liquids: 1.3...8806 Gallons/minute Gases: 1.8...5885 CFM Steam: 1.5...9417 CFM |
| Pipe size range | 1/2″...12″ (DN15...DN300) |
| Operating voltage | 18–30 VDC (24 VDC ±15% nominal) |
| Ingress protection | IP65 |
| Materials (wetted sensor) | 316L Stainless Steel or Hastelloy C |
| Process connections | ANSI B16.5 Class 150/300/600 (½″...12″); EN 1092 1 (DN15...DN300); wafer; NPT/BSPP threaded |
| Media Temperature |
-40…482 °F (-40…250 °C) standard -40…662 °F (-40…350 °C) high temp |
| Ambient Temperature |
-40…185 °F (-40…85 °C) Ex proof: -22…140 °F |
| Humidity | 5–95% RH |
| Hazardous area | Exd II BT5 Gb (Optional) |
Connectivity & Integration
-
Select your output: A = 4–20 mA + pulse, B = 4–20 mA with HART + pulse, M = RS 485/Modbus
-
Compensation options: E2 pressure, E3 temperature, or E4 pressure + temperature (recommended for gases and required for steam) to maintain accuracy across changing conditions
- Electrical entries: ½″ NPT hub or M18×1.5 cable gland
Compliance & Environmental
- IP65 enclosure, ambient −40…185 °F; Exd II BT5 Gb hazardous area option with specified ambient/medium limits
Ordering & Availability
-
Model: P79; with selectable medium, output, compensation, temperature rating, process connection standard/size (ANSI/EN/wafer/threaded), materials, electrical entry, and Ex proof option (see "Build Your Part Number").
Download the data sheet (for full technical parameters and dimensions of the P79)
Visit the product page & request a quote - our team will help you select your exact build.
