Geared for Speed and Accuracy

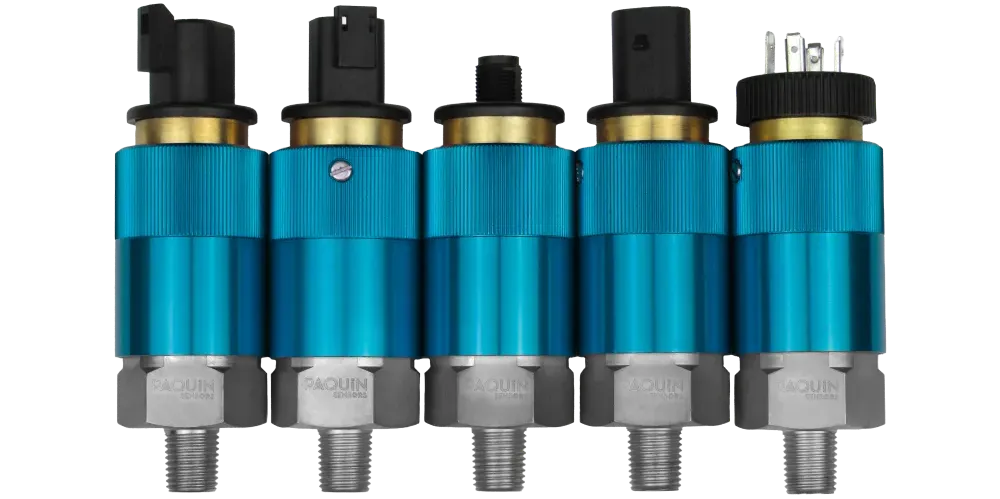

Introducing Paquin's new P412 Hand Adjustable Low / Medium Pressure Switch
Field‑settable switching for low and medium pressure applications with rugged construction, flexible terminations, and long service life.
Long-lasting Mechanical Life
-
Built for: industrial machinery, HVAC/refrigeration, water treatment, fluid management, and mobile/heavy equipment.
-
Delivers: hand‑adjustable setpoints, IP65/IP67 ingress protection, and 1M/50k mechanical/electrical life.
-
Integrates via: DIN 43650A, M12x1, AMP Superseal, Deutsch DT, or cable leads (mating connectors available).
What Paquin's P412 Pressure Switch Does
Low/medium‑pressure systems often need frequent setpoint tweaks as loads and media change. Tool‑required adjustments extend downtime. The P412 solves this with a hand‑turn housing that lets technicians dial in the trip point quickly—then lock it in.
What’s New / Why It’s Different
-
Hand‑adjustable setpoint (no tools).
-
Five range options from 10 to 750 psi to fit diverse duties.
-
Contact flexibility: SPST‑NO, SPST‑NC, or SPDT.
-
Ingress options: IP65 (with DIN 43650A & approved connector) or IP67 (others).
-
Rugged construction: brass or 304 stainless body; seal options for broad media and temperature windows.
Applications
-
Industrial machinery & manufacturing equipment
-
HVAC & refrigeration
-
Water treatment / general fluid management
-
Mobile/heavy equipment & hydraulic compactors
Key Specifications
| Parameter | Value |
|---|---|
| Measurement / Function | Mechanical pressure switch (diaphragm sensing) |
| Adjustable Ranges |
10–40 PSI 25–100 PSI 50–200 PSI 100–400 PSI 250–750 PSI |
| Hysteresis (diff.) | 10–20% of set pressure (ranges ≥25–100 psi); 10–40% for 10–40 psi range |
| Repeatability | 1% |
| Contacts | SPST‑NO / SPST‑NC / SPDT |
| Electrical Rating | 10A @ 250 VAC; 4A @ 30 VDC |
| Process Ports | 1/8″ NPT (only for ranges <750 psi), 1/4″ NPT, 7/16″‑20 SAE‑4 (ED), 9/16″‑18 SAE‑6 (ED), G 1/4 (ED) |
| Materials (body/port) | Brass or 304 stainless steel body/port |
| Seals | NBR, FKM, HNBR, EPDM |
| IP Rating | IP65 (DIN 43650A with approved connector); IP67 (M12/AMP/Deutsch/cable) |
| Over / Burst Pressure | 6,525 / 8,700 psi |
| Operating Temp (by seal) |
EPDM −58 to 266°F NBR −22 to 212°F FKM +14 to 248°F HNBR −22 to 248°F |
| Ambient / Medium Temp | −13 to 150°F ambient; −40 to 248°F medium |
| Life | 1M mechanical cycles; 50k electrical cycles |
| Terminations | DIN 43650A, M12x1 (2‑pole), AMP Superseal 1.5, Deutsch DT (2P/3P), 20″ PVC cable |
