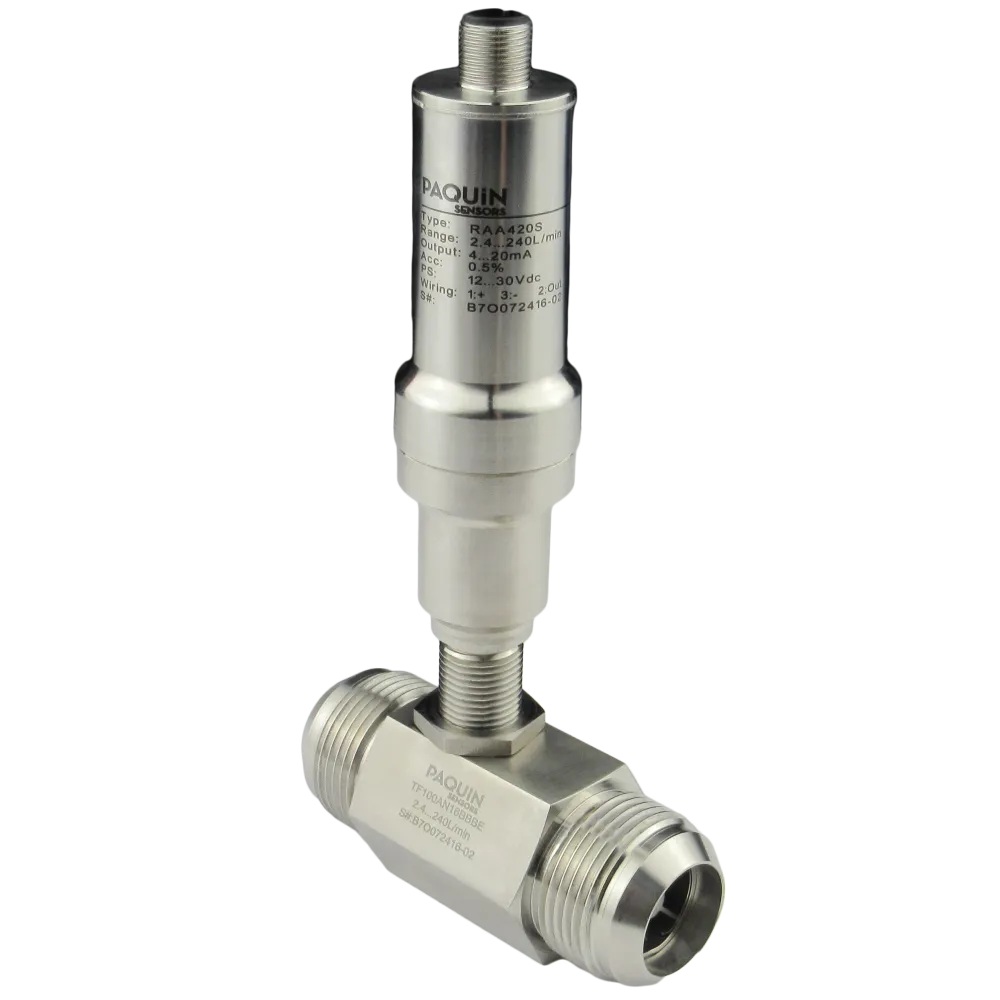

Paquin is spotlighting our P77 High Turndown Turbine Flow Meter, a compact, rugged 316 stainless turbine flow meter for precision liquid measurement, with configurable sensing and output options for demanding industrial environments.
The P77 is a high‑performance turbine flow meter that converts liquid flow velocity into a standardized electrical signal using a turbine/detector system, offering fast response and configurable outputs to match modern controls and test systems.
Built for industrial realities:
- Broad Measuring Range: 0.01…449 GPM (0.04…1700 L/min), 5800 psi (400 bar) rating, IP67, 0.5% accuracy with ±1% of reading repeatability.
-
Output flexibility: choose analog, pulse, linearized pulse, display-integrated, or Ex proof display configurations.
The Problem The P77 Solves
When applications demand repeatable liquid flow measurement across varying operating points, especially in skid systems, industrial process loops, or validation rigs, teams need a meter that’s accurate, robust, and easy to integrate. The P77 supports multiple sensing and output styles so you can standardize your mechanical footprint while selecting the signal type your PLC/DAQ expects.
What’s New / Why It’s Different
-
Outputs built for controls:
-
4…20 mA
-
Pulse Width Modulation (PNP/NPN)
-
Linearized pulse (PNP/NPN)
- 4…20 mA + 2 programmable push pull switches + display
-
-
- 4…20 mA + 2 programmable push pull switches + Ex proof display
-
Configurable sensing methods: select Magnetic, RF, or Hall Effect sensing based on application needs.
-
Rugged connectivity: M12x1 with IP67 rating
- Temperature options up to 446°F: Media ranges support standard through high temperature service
-
Stainless construction: 316 stainless steel body, 17-4 PH stainless steel rotor, 316 stainless steel rotor shaft, and bearing options including stainless steel or hybrid ceramic.
Applications
-
Petrochemical
-
Oil & gas
-
Hydraulic systems
-
Lubrication circuits
-
Water treatment
-
Solvent handling
-
And more
Key Specifications (snapshot)
| Parameter | Value |
|---|---|
| Measurement Principle | Turbine flow meter (liquid) |
| Measuring range | 0.01…449 GPM (0.05…1700 L/min) |
| Accuracy | 0.5% |
| Repeatability | ±1% of reading |
| Outputs | 4…20 mA; Pulse Width Modulation (PNP/NPN); linearized pulse (PNP/NPN); analog 4…20 mA + 2 switches + display; analog 4…20 mA + 2 switches + Ex proof display |
| Electrical | 10…30 VDC, 12…30 VDC , M12x1; reverse polarity & short circuit protection |
| Protection | IP67 |
| Media temperature | -4 to 446°F (-20 to 230°C) |
| Ambient | -40…185°F (-40 to 85°C) |
| Connections | ½″ ... 2" NPT male or ½″ ... 2 ½" ANSI Class 600 Flange |
| Materials | 316 SS body; 17 4 PH rotor; 316 SS shaft; stainless or hybrid ceramic bearings |
| Display | Standard and Ex-Proof displays available |
Ordering & Availability
-
Model: P77; select output, media temperature, process connection, bearing materials, and sensing method (see "Build Your Part Number").
Download the data sheet (for full technical parameters and dimensions of the P77)
Visit the product page & request a quote - our team will help you select your exact build.
