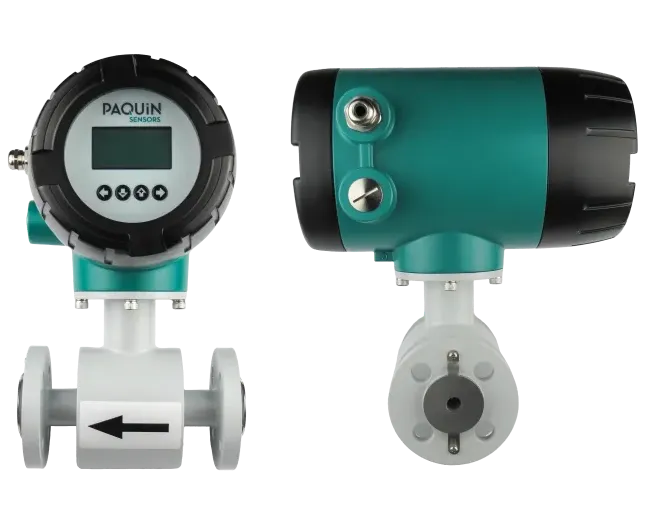

Paquin is spotlighting our P86 Electromagnetic Flow Meter (Or Magnetic Flow Meter) ideal for industrial applications ranging from water/wastewater flow measurement to pharmaceutical manufacturing.
Accurate, no-pressure-loss flow measurement for conductive liquids with flexible I/O, materials, and connections built for tough industrial environments. View the P86 datasheet (PDF)
Built for: water/wastewater, chemical processing, power, machine manufacturing—and deployments that include cooling systems and process utilities in pharma/food (when conductivity and material compatibility are met).
Delivers: 0.5% accuracy, ±0.15% repeatability, bi-directional measurement, and no pressure loss.
Integrates via: 4–20 mA, HART, RS-485/Modbus, 0–5 kHz pulse, and two relays; integrated or remote transmitters.
The Problem The P86 Solves
Conventional flow technologies can add pressure drop, struggle with slurries, or demand frequent recalibration. The P86 uses electromagnetic induction to measure conductive liquids without obstructions in the flow path, eliminating pressure loss while maintaining accuracy across a broad velocity range. Empty/full pipe detection and self-diagnostics help keep signals trustworthy during upset conditions.
What’s New / Why It’s Different
-
Accuracy where it counts: 0.5% accuracy, ±0.15% repeatability over 0.1–10 m/s
-
Industrial-grade connectivity: 4...20 mA + HART, RS485 Modbus, 0–5 kHz pulse, 2 isolated relays
-
Rugged by design: IP65 (integrated) or IP68 (remote) protection; Ex d [ia Ga] qllc T5 Gb option
-
Fit-for-process materials: electrodes in 316L/Hastelloy B/Hastelloy C/Titanium/Tantalum; liners PTFE/PFA/PUR/CR; (Others available)
-
Installs your way: ANSI or EN flanges up to 24″, wafer PN16, and NPT/BSPP threaded ends up to 2″
Applications
- Water / Wastewater
- Pharmaceutical / Food & Beverage
- Chemical Processing
- Oil and Gas
- Pulp and Paper
- Irrigation Systems
- Cooling Systems
- Power Plants
- Machine Manufacturing
Key Specifications (snapshot)
| Parameter | Value |
|---|---|
| Measurement principle | Electromagnetic (conductive liquids) |
| Conductivity threshold | > 5 µS/cm |
| Velocity range | 0.33–33 ft/s (0.1–10 m/s) |
| Pipe size range | 3/8″–24″ (DN10–DN600) |
| Accuracy | 0.5% |
| Repeatability | ±0.15% of reading |
| Outputs | 4...20 mA, HART, RS485 Modbus, 0–5 kHz pulse, 2 relays (30 V/3 A; 250 V/3 A) |
| Power | 85–265 VAC ±10% or 24 VDC ±10%, < 20 W |
| Display | Local display (instantaneous %/rate and total flow rate) |
| Ingress protection | IP65 (integrated); IP68 (remote) |
| Optional Ex-proof | Ex d [ia Ga] qllc T5 Gb |
| Electrode options | 316L SS, Hastelloy B/C, Titanium, Tantalum (others on request) |
| Liner options | PTFE, PFA, PUR (polyurethane), CR (Chloroprene rubber) (others on request) |
| Process connections | ANSI Class 150/300/900/1500, EN 1092-1 Flange PN10/16/40/160/250, Wafer PN16, NPT/BSPP female or male up to 2″ |
| Electrical connection | M20×1.5 cable gland or ½″ NPT hub; 10 m cable if remote |
Connectivity & Integration
-
Integrated or remote transmitter configuration (remote includes 10 m cable)
-
Communicates via 4...20 mA, HART, or RS485 Modbus, with pulse output for batching/totalizing and isolated relays for alarms
-
Wiring schemes and terminal designations are provided in the I/O section of the datasheet
Compliance & Environmental
-
Ingress: IP65 (integrated) | IP68 (remote)
-
Ambient: −22 to 140 °F (−30 to 60 °C)
-
Medium temp: liner-dependent, up to 356 °F (180 °C)
-
Hazardous-area option: Ex d [ia Ga] qllc T5 Gb
Ordering & Availability
-
Model: P86, with selectable output, relays, IP rating, electrodes/liners, process connection material, power, electrical entry, integrated/remote, cable length, and Ex-proof option (see “Build Your Part Number” in our data sheet)
Download the data sheet (for full technical parameters and dimensions of the P86)
Visit the product page & request a quote - our team will help you select your exact build.
